ノズル
幅広い機種に対応した多様な内径に対応
ノズル長も豊富に揃えています
ノズル
メーカー純正品と同等品質で低価格を実現しています。ワイヤーカット加工に係るランニングコストを大幅に削減できます。
国内の主要加工機メーカーに対応。ご使用中のメーカー名、型式をご連絡いただければ、無料でお見積いたします。
お見積方法は、「お見積フォーム」またはお電話（0587-57-1729）／ＦＡＸ（0587-57-1730）にて承ります。
ご質問・ご相談もお気軽にお問合せください。
三菱電機に対応したノズル
| 品番 | メーカー型番（1） | メーカー型番（2） | 写真 | 説明 | サイズ | 適用 |
|---|---|---|---|---|---|---|
| M205L-long |
|
Only long nozzle Optional L = 20. 30. 40. 50 mm |
H' H series -----------------SK HA. H1. H. 90PH -- Manual |
|||
| M207A | X053C491H01 |
|
Water nozzle with ditch Lower Plastic-brass type of M2102 |
4.0 mm | H' H series ------------------SK HA. H1. H. 90PH -- Manual |
|
| X053C491H02 | 6.0 mm (M208) | |||||
| X053C491H03 | 8.0 mm (M209) | |||||
| M207B | X053C491H01 |
|
Water nozzle with ditch Lower Plastic-brass type of M2102 |
4.0 mm | H' H series ----------------SK HA. H1. H. 90PH -- Manual |
|
| X053C491H02 | 6.0 mm (M208) | |||||
| X053C491H03 | 8.0 mm (M209) | |||||
| M207A-1 |
|

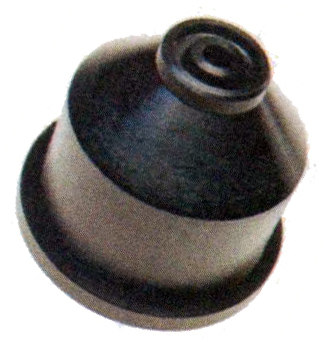

Water nozzle Lower with ditch |
Plastic- White /black | M207A | ||
| M207B-1 |
|

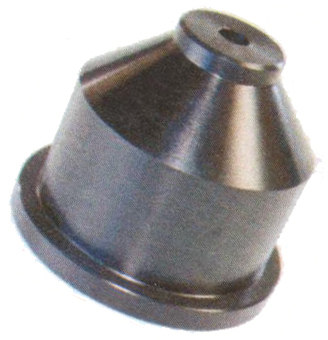

Water nozzle Lower with ditch |
Plastic- white / black | M207B | ||
| M207L |
|
Water nozzle Lower long type |
||||
| M210 | X053C621H01 |
|
Water nozzle Lower- one side cut Plastic-brass type of M2101 |
4.0 mm | HA. H1. A. B. Z. PA series AF1 type Plastic-with / black |
|
| 6.0 mm | ||||||
| 8.0 mm | ||||||
| M210-1 | X053C621H01 |
|
Water nozzle Lower-one side cut Type of M2101 |
4.0 mm | HA. H1. A. B. Z. PA series AF1 type Plastic-with / black |
|
| 6.0 mm | ||||||
| 8.0 mm | ||||||
| M2101 | X053C621H01 | DA145A |
|
Flushing nozzle cut- ceramic Lower |
4.0 mm | HA. H1. A. B. Z. PA series AF1 type |
| X053C621H02 | 6.0 mm | |||||
| X053C621H03 | DA144A | 8.0 mm | ||||
| M2102 | X054D209H11 | DC882A |
|
Flushing nozzle ceramic Lower |
4.0 mm | G. F1 series -------------SK 90PG series ---Manual |
| X054C491H01 | DC882A | 4.0 mm | ||||
| X054D209H12 | DD399A | 6.0 mm | ||||
| X054C491H02 | DD399A | 6.0 mm | ||||
| X054D209H13 | 8.0 mm | |||||
| M2102-1 |
|
Flushing nozzle ceramic Lower with ditch |
6.0 mm | G. F1 series-------------SK 90PG series --- Manual |
||
| M2103 | X054D881H03 | DQ303A |
|
Flushing nozzle ceramic Lower |
4.0 mm | CX. FX. SX. FA. QA. RA. PX. HA. PA, FX-K series AT. AF2. AF3 type |
| 7.0 mm | ||||||
| X054D881H04 | DQ304A | 8.0 mm | ||||
| X054D881H05 | 12 mm | |||||
| X054D881H04 | 15 mm | |||||
| M2103-1 |
|
Spring for nozzle M2103 | OD20 x 18 mm | |||
| M211 | X183C378H01 | DA147A |
|
Flushing nozzle Upper white or black |
4.0 mm | PA. A. Z. HA. B. H1 series AF1 type |
| X183C378H03 | DA150A | 8.0 mm | ||||
| X183C378H04 | 10 mm | |||||
| X183C378H05 | 12 mm | |||||
| M211-1 |
|
Flushing nozzle with ditch Upper White or black |
4.0 mm | PA. A. Z. HA. B. H1 series AF1 type |
||
| M212 |
|
Flushing nozzle Lower Plastic-brass type for M2103 |
4.0 mm | CX. FX. SX. FA. QA. RA. PX. HA. PA series AT. AF2. AF3 type |
||
| 6.0 mm | ||||||
| 8.0 mm | ||||||
| M212A |
|
Flushing nozzle with ditch Lower |
CX. SX. FX series AF2. AF3 type |
|||
| M212L | X054D918H01 |
|
Plastic flushing nozzle FS Lower L = 5.0 mm |
4.0 mm | CX. SX. FX. series AF2. AF3 type |
|
| M215 | X186C793H01 | DQ442A |
|

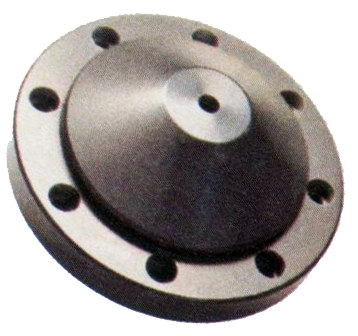

Flushing nozzle Upper |
4.0 mm | FA. RA. QA. PX. CX. SX. PA FX-K. HA series AT. AF3 type |
| X186C793H02 | DQ443A | 8.0 mm | ||||
| X186C793H03 | 12 mm | |||||
| M215-1 | X186C793H01 |
|

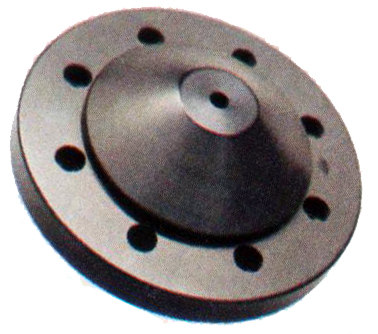

Water nozzle Upper |
OD=73 mm | CX. SX. FX. series AF2. AF3 type |
|
| M215-2 |
|

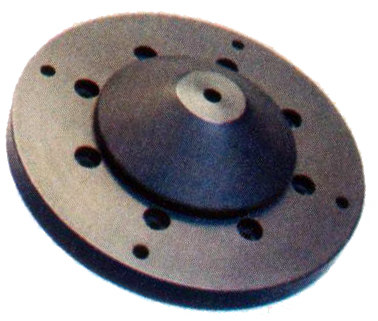

Water nozzle upper | OD=85 mm | FX. FA series AF2. AF3 type |
||
| M215-O |
|
O-ring for M215 | ||||
| M215L |
|
Water nozzle upper(M215) long type set with top 10. 20. 30 mm (available size 40. 50 mm) |
4.0 mm | FA. RA. QA. PX. CX. SX. PA FX-K. HA. A. Z. B series AT. AF2. AF3 type |
||
| M216 | X182B458H02 |
|
Flushing nozzle holder Upper |
OD63 x id15.5 mm T = 20 mm | PX. CX. SX. PA. FX-30. HA AT. AF2. AF3 type |
|
| M216-1 | X196C450H01 |
|
Flushing nozzle holder Upper |
OD73 x id15.5 mm T=22 mm | CX. SX. FX series AF2. AF3 type |
|
| M217 | X196C451H01 | DA868A |
|
Flushing nozzle Upper T= 16.7 mm |
4.0 mm | FX10. FX20 series AF3 type |
| X196C451H01 | 8.0 mm | |||||
ソディックに対応したノズル
| 品番 | メーカー型番 | 写真 | 説明 | サイズ | 適用 |
|---|---|---|---|---|---|
| S200 | 3081591 |
|
Water nozzle 2 Guide unit type 85 - 2 |
AW330/453 .BF250/275 EPOC300 EPOC3W/3WS/5W/6W/8W GW/GOW/GO |
|
| S201 | 3081594 |
|
Water nozzle NE guide for SUS assy (Upper & lower) 84 type |
D=5.0 mm | 330W. 453W. 654W. EPOC3W |
| S202 | 3082085 |
|
Rectification nozzles 3WS | AW330. AW453. BF275. EPOC300 Upper & lower Manual type Guide unit type 85-2 |
|
| S202A | 3080030 |
|
Water jacket 3WS assy | AW330. AW453. BF275. EPOC300 Upper & lower Manual type Guide unit type 85-2 |
|
| S202B | 3080593 |
|
Adjusting nut 3WS assy | AW330. AW453. BF275. EPOC300 Upper & lower Manual type Guide unit type 85-2 |
|
| S202C | 3080358 |
|
Water nozzle 3WS assy | D=5.0 mm | AW330. AW453. BF275. EPOC300 Upper & lower Manual type Guide unit type 85-2 |
| S202-set | 3080639 |
|
Water nozzle 3WS assembly | AW330. AW453. BF275. EPOC300 Upper & lower Manual type Guide unit type 85-2 |
|
| S203 |
|
Nozzle P (upper & lower) |
id= 10 mm | AP150 - manual type KM-3 type |
|
| 3082055 | id= 6.0 mm | ||||
| S204 | 3082055 |
|
Water nozzle KM-1 (upper & lower) |
id=5.0 mm | 150W |
| S205 |
|
Water nozzle KM-2 (upper & lower) |
id=10 mm | 150W | |
| S206 |
|
Water guide with nose (upper & lower) Guide unit type KM-1 |
id=5.0 mm | 150W | |
| S207 | 3081604 |
|
Nozzle C upper / Standard Nozzle H2 upper / Standard Nozzle T2 for taper 30Gr. Nozzle G3 upper without AWT Nozzle G4 upper without AWT |
D=6.0 mm | AQ. A. EPOC. AP. PGW. EXC. BF. JL 86-2. 90-1 with AWT |
| 3081606 | D=10 mm | ||||
| 3081868 | D=12 mm | ||||
| 3082997 | D=3.0 mm | ||||
| 3082998 | D=4.0 mm | ||||
| S207L | 3081682 |
|
Long nozzle LN1 upper Long nozzle LN3 upper Long nozzle LN5 upper Long nozzle LN7 upper Long nozzle upper |
id6.0 x 6.5 mmL | AQ. A. EPOC series AP200 ... 550 seies PGW200. EXC100. BF. JL 86-2. 90-1 with AWT |
| 3081684 | id6.0 x 11.5 mmL | ||||
| 3081689 | id6.0 x 16.5 mmL | ||||
| 3082396 | id10 x 11.5 mmL | ||||
| id10 x 16.5 mmL | |||||
| S209 | 3081674 |
|
Nozzle A | D=6.0 mm (A) | A. EPOC. AP. PGW. EXC. BF. JL 87-3 type OD29.8/22.0/16.0 x 16.3 mmL AWT=lower Manual=upper & lower |
| 3081675 | D=8.0 mm (B) | ||||
| 3081676 | D=10 mm (H1) | ||||
| 3081867 | D=12 mm for Taper 30 | ||||
| 3082128 | D=3.0 mm (E3) | ||||
| 3082156 | D=2.0 mm (E2) | ||||
| 3082207 | D=4.0 mm (E4) | ||||
| S209-1 | 3086396 |
|
Float nozzle S / Lower without O-ring AWT Float nozzle F / Lower without O-ring AWT |
D=6.0 mm | AP200L. 450L 90-3 type OD34.8 /12.8 x 17.0 mmL |
| 3086746 | D=10 mm | ||||
| S209AS | 3081679 |
|
Water nozzle standard without O-ring |
D=6.0 mm | A350W. A500W L=16.8 mm |
| S209W | 3086386 |
|
Float nozzle Lower |
D= 6.0 mm (S) | AQ series / AP300 … 550 87-3 AWT without O-ring OD29.8/12.8 x 17.6 mmL |
| 3086443 | D= 10 mm (F) | ||||
| 3086486 | D= 12 mm (T) | ||||
| Special | D= 4.0 mm (S) | ||||
| S209L | 3085338 |
|
Nozzle LA S209 id=6.0 mm Nozzle LA10 S209 id=6.0 mm Nozzle LA15 S209 id=6.0 mm Nozzle LA20 S209 id=6.0 mm Nozzle LA25 S209 id=6.0 mm Nozzle LA50 S209 id=6.0 mm |
L=4.0 mm | A. EPOC. AP. PGW. EXC. BF. JL |
| 3085339 | L=10 mm | ||||
| 3085340 | L=15 mm | ||||
| 3085341 | L=20 m | ||||
| 3085342 | L=25.4 mm | ||||
| 3085343 | L=50 mm | ||||
| S210 | 3082603 |
|
Nozzle lower Lehmann type AWT |
D=3.0 mm | A280L ….... L series |
ファナックに対応したノズル
| 品番 | メーカー型番 | 写真 | 説明 | サイズ | 適用 |
|---|---|---|---|---|---|
| F128 | A290-8104-X620 |
|
Guide fine wire spec. for upper ceramic inserted / OD10 x 14 mm |
0.3 mm | ∂-iB series AWF |
| 0.5 mm | |||||
| Fe140 | A290-8021-Y701 |
|
V ditch guide (Sapphire roller) |
OD12 x id6.0 x 8.0 mm | |
| Fe140-1 | A290-8021-Y702 |
|
Shaft | OD10 x 19.5 mm | |
| F209 |
|
Nozzle upper Nozzle upper for ∂-C. Nozzle upper for ∂-A/B Nozzle upper Nozzle upper for ∂-A/B Nozzle upper for ∂-C. Nozzle upper |
11 mm | ∂-A/B/C series - upper Manual type OD40 x 38 mm |
|
| A290-8109-X774 | 4.0 mm | ||||
| A290-8101-X775 | 4.0 mm | ||||
| A290-8111-X774 | 4.0 mm | ||||
| A290-8101-X776 | 6.5 mm | ||||
| A290-8109-X776 | 6.5 mm | ||||
| A290-8111-X776 | 6.5 mm | ||||
| F210 | A290-8101-X755 |
|
Nozzle holder lower for F211 | ∂-A/B/C series Manual type OD40 x id16 x 23 mm |
|
| F211 | A290-8103-X774 |
|
Water nozzle lower |
2.0 mm | ∂-A/B/C series Manual type OD27/10~13.3 x 16 mm |
| A290-8101-X774 | 4.0 mm (standard) | ||||
| A290-8101-X756 | 6.5 mm | ||||
| A290-8101-X777 | 10 mm (for taper) | ||||
| F212 | A290-8102-X752 |
|
Water nozzle upper |
12 mm (F216) | ∂-1A/1B/1C/iB series AWF OD40 x 23.5 mm |
| A290-8104-X775 | 2.0 mm | ||||
| A290-8102-X775 | 4.0 mm (F214) | ||||
| A290-8102-X751 | 6.5 mm (standard) | ||||
| F213 | A290-8102-X772 |
|
Water nozzle lower |
12 mm (F217) | ∂-1A/1B/1C/iB series AWF OD40 x 25 mm |
| A290-8104-X774 | 2.0 mm | ||||
| A290-8102-X774 | 4.0 mm (F215) | ||||
| A290-8102-X771 | 6.5 mm (standard) | ||||
| F218 |
|
Water nozzle upper |
2.0 mm | ∂-C series Manual type OD40 x 34 mm |
|
| 4.0 mm | |||||
| A290-8109-X776 | 6.5 mm | ||||
その他メーカーに対応したノズル
| 対応メーカー：Brother（ブラザー） | |||||
| 品番 | メーカー型番 | 写真 | 説明 | サイズ | 適用 |
|---|---|---|---|---|---|
| B201 | 630877000 |
|
Water nozzle - 100 upper & lower |
4.0 mm | HS-300 |
| B201-1 |
|
Nozzle holder for B201 | 36 x 36 x 19 mm | HS-300 | |
| B202 | 632272000 |
|
Nozzle holder - upper | 42 x 42 x 23.5 mm | HS-3100/3600 |
| B202-1 |
|
Screw upper for B202 with AWT option |
HS-3100/3600 | ||
| B203 | 632930000 |
|
Water nozzle-AT 1506 lower with AWT option id=4.0 mm |
OD37.5 x 29 mm | HS-3100/3600 |
| B203-1 | 632930000 |
|
Nut for nozzle-AT 1506 | HS-3100/3600 | |
| 対応メーカー：SEIBU | |||||
| 品番 | メーカー型番 | 写真 | 説明 | サイズ | 適用 |
|---|---|---|---|---|---|
| Se211 | 5427089 |
|
Water nozzle upper & lower |
id=3.0 / 5.0 mm | F3. E series AWF |
| Se212 | 5428160 |
|
Water nozzle upper |
id=3.0 / 5.0 mm | K. K1 .K2. K3 series AWF-2B |
| Se213 |
|
Water nozzle upper & lower |
id=3.0 / 5.0 mm | K. K1. K2 series Manual type |
|
| Se215 | 5428161 |
|
Water nozzle lower with taper head |
id=3.0 / 6.0 mm | K. K1. K2. K3 series Manual / AWF-2B |
| Se216 | 5424011 |
|
Water nozzle upper & lower |
id=3.0 / 6.0 mm | B. E. P300 series |
| Se217 |
|
Water nozzle lower |
OD23 x id3.0 x 14 mm | E. F series | |
| Se218 | 4465970 |
|
Water nozzle upper |
id=4.0 mm | A5S. A7S AWF |
| Se219 | 4465971 |
|
Water nozzle lower |
id=4.0 mm | A5S. A7S AWF |
| Se220 | 4469440 |
|
Water nozzle upper id=3.0 / 4.0 mm |
OD37.5 x 24.5 mm | A5S3. C5S series AWF |
| Se220-1 |
|
Water nozzle upper id=3.0 / 4.0 mm |
OD37.5 x 23 mm | M500S. M700S. M750S. M550S. M350S |
|
| Se221 | 4204528 |
|
Water nozzle with tapered-end lower id=3.0 / 4.0 mm |
OD37.5 x 23 mm | A5S3. C5S series M700S. M500S. M750S. M550S. M350S AWF |
-
